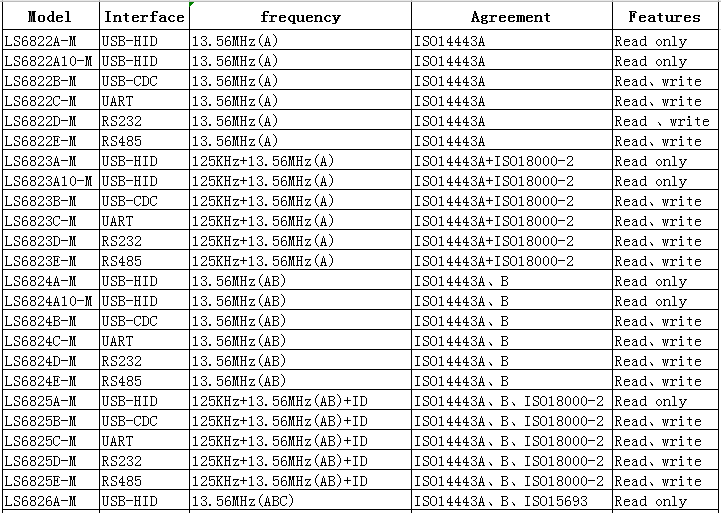

Model selection parameters

Note: the above product models are standard products. If you have other technical requirements, you can contact customer service for customized design.

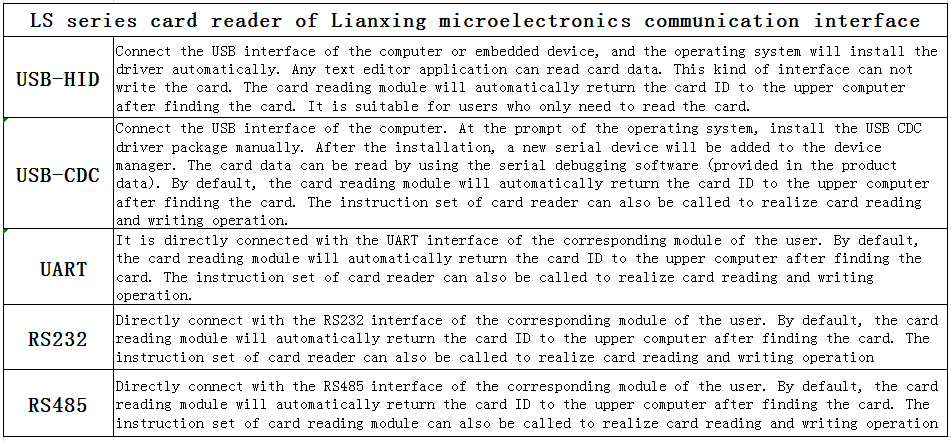

Note: the connection of reading and writing module of RS232 / RS485 interface needs to cut off the a-head of USB cable, and there are four wires exposed. They are red, white, green and black respectively, corresponding to 5V, TXD, RXD and GND.
